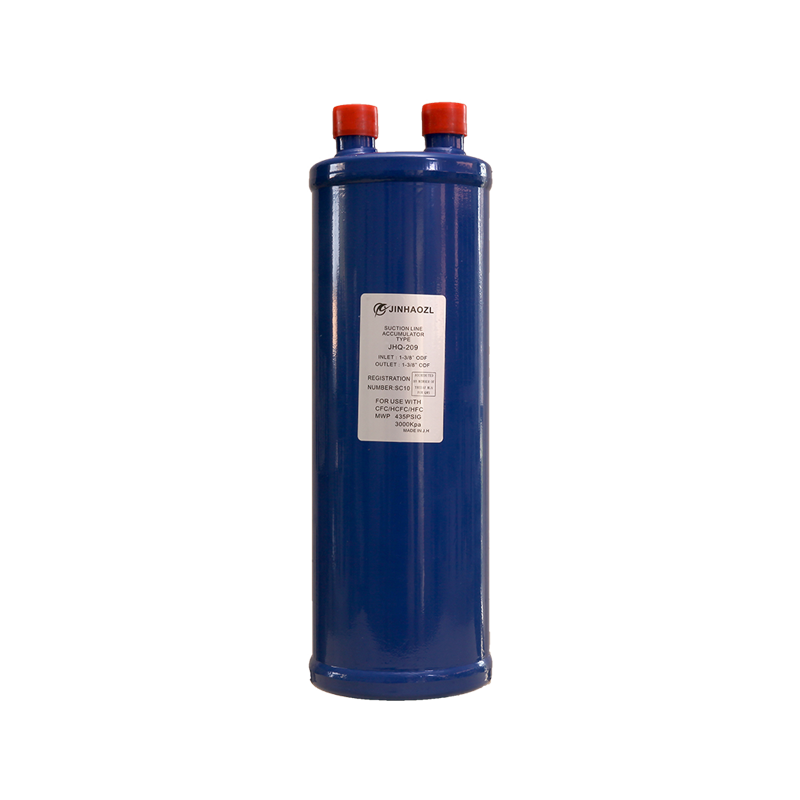

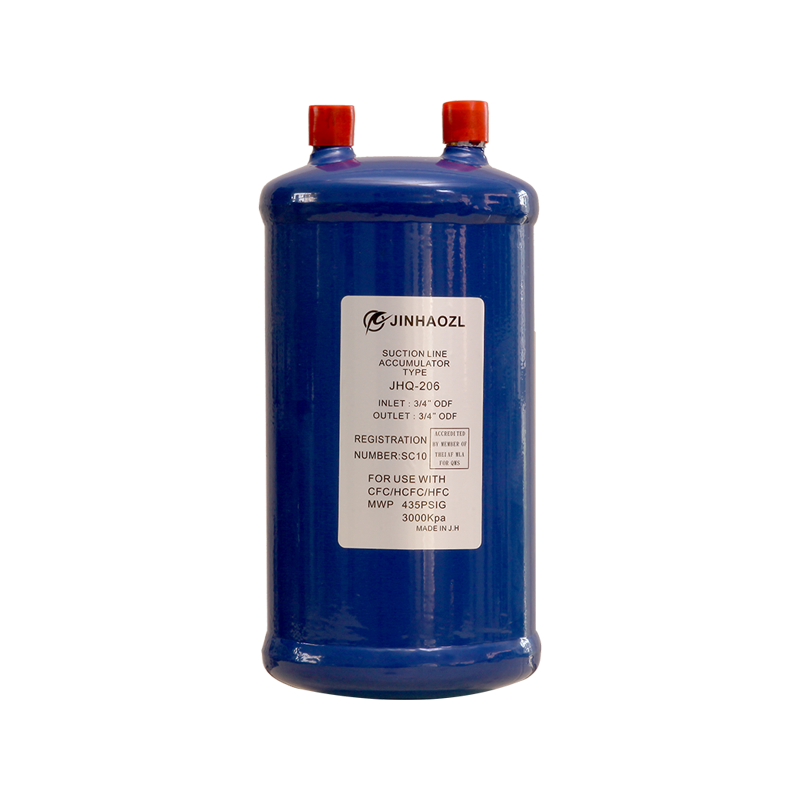

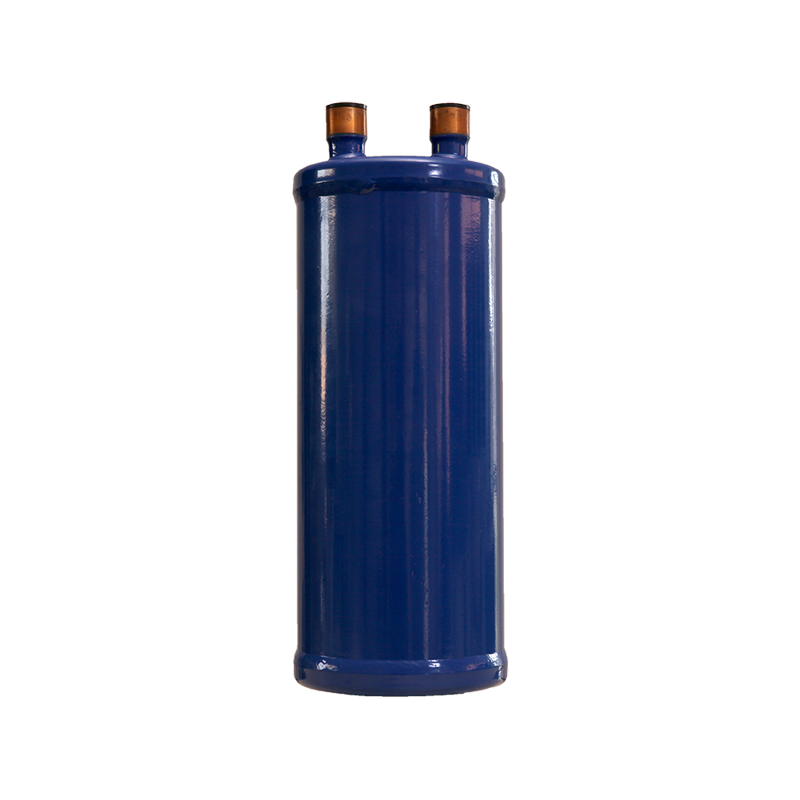

Accumulator linea suctionis utitur consilio U fistulae ad ne refrigerandum a spargendo, melius ad colligendum oleum in fundo. Melius est ut compressor intime instituam.
Solidum aeris nexum
'U' designat tubum maximum fluxum refrigerandi et minimum olei captionem efficit.
Filtrum et foramen parvum in 'U' tubus est ne res aliena
'U' design tubus gaseous refrigerandi intrantes compressor prohibere potest
Corrosio repugnans pulveris pictura metam ne rubiginem
Technica notitia
Refrigerant: CFC, HCFC, HFC
Maximum opus pressura: 28 bar
Temperature:-50 120c
| Modus | Connection size (inch) | ΦD(mm) | H(mm) | B(mm) | E(mm) | C(mm) | Volume(L) |
| JHQ-204 | 1/2" | Φ102 | 210 | 50 | - | - | 1.4 |
| JHQ-205 | 5/8" | Φ102 | 250 | 50 | - | - | 1.6 |
| JHQ-206 | 3/4" | Φ140 | 267 | 70 | - | - | 3.4 |
| JHQ-207 | 7/8" | Φ140 | 330 | 70 | - | - | 4.2 |
| JHQ-208 | 1-1/8" | Φ159 | 393 | 80 | - | - | 6.5 |
| JHQ-209 | 1-3/8" | Φ159 | 470 | 80 | - | - | 8 |
| JHQ-210 | 1-5/8" | Φ159 | 530 | 80 | - | - | 9.3 |
| JHQ-2117 | 2-1/8" | Φ219 | 400 | 108 | - | - | 15 |
| JHQ-4117 | 2-1/8" | Φ273 | 530 | 127 | 230 | 230 | 30 |
| JHQ-3521 | 2-5/8" | Φ273 | 640 | 127 | 230 | 230 | 35 |
| JHQ-5624 | 3" | Φ325 | 650 | 180 | 270 | 270 | 50 |
| JHQ-5625 | 3-1/8" | Φ325 | 650 | 170 | 270 | 270 | 50 |
| JHQ-7034 | 3-5/8" | Φ425 | 650 | 220 | 380 | 380 | 60 |
