Testa: Partes fabricae schedae metallicae efficiuntur e laminae ferreae qualis est, et superficies omnes electrostatice phosphatae sunt et sparsae cum instrumento automatico sparsione importato, quae validam corrosionem resistentiam habet et ad varios usus ambitus accommodare potest.
Ut bona superficies qualitas per ministerium vitae unitatis conservetur. Aluminium vel crustae ferreae immaculatae nativus fieri potest secundum necessitates usorum.
Aquae lance: disposito obliquo angulo ad faciliorem solutionem aquae defrostingae lenis, ne aqua natans, et aqua in alveo aquae cumulum ne.
Caloris fistulae commutatio: Summus altus dentatis, interne stamineus tubus aeris electus est ad efficientiam translationis summus caloris.
Pinnulae: Adoptans notam novam sine undo aluminii hydrophilici pinnas, aerem motum augens, calorem coëfficientem translationis confortans, et caloris maxime melioris effectus transferendi;
Fan: Princeps static pressus, specialiter nativus summus potentia externa rotor axialis fluxus ventilabrum, idoneus ad altum humiditatis ambitus, alta efficientia, humilis industria consummatio, IMPERVIUS et dustproof, cum praestantia effectus; Fan officinas
Antea transierunt stateram static et dynamicam probat;
Defrosting: Vis humilis ferro immaculata defrosting fistulae electrici calefactionis electae et ordinatae unice et rationabiliter, celeri cursu defrosting et penitus defrostione, vitato calore detrimenti.
Ministerium vitae electrici fistulae calefactionis porrige.
Coniunctio electrica arca: Arca coniunctas habet humilitatem resistentiam, IMPERVIUS et dustproof proprietates, flammam altam retardationem, et in fronte collocatur ad facilem wiring et sustentationem.
Fin- iustae: Vexillum spacium 4.5mm, 6mm et 9mm; Mos scheda iustae 12mm et 18mm ad usus necessarios occurrit.
Genus refrigerant: R404A refrigerandi seligi possunt, R507A, R22, R134A, R407C, et R410A nativus secundum requisita utentis.
Evaporator:
1. Unius fascis fasciculus layout plene considerat quaestiones clavorum qualia sunt mutationes in statu refrigerante, rate fluente, stilla pressionis, et distributio uniformitatis sub conditionibus evaporationis, unde fit in superiori calore trans- fectio evaporatoris superficiei frigidioris;
2. Efficiens et compactus consilium caloris commutatoris, cum furca formata roboratur calor internus staminea caloris commutationis fistulas transferre;
3. Caloris permutationis tubulae et pinnulae hydrophilicae aluminii mechanice dilatatae sunt ad arcte ligamen tubuli aenei cum schedae aluminii, ut ad efficiendum efficientiam melioris caloris translatio.
4. Liquor evaporatoris separatoris et refrigerantis ambitus optimized est ut meliorem efficientiam caloris commutationis in diversis ambitus applicationis curaret.
5. Unicum consilium deflectentis venti sub aestu commutatoris sita est ne brevibus circuitionibus editi

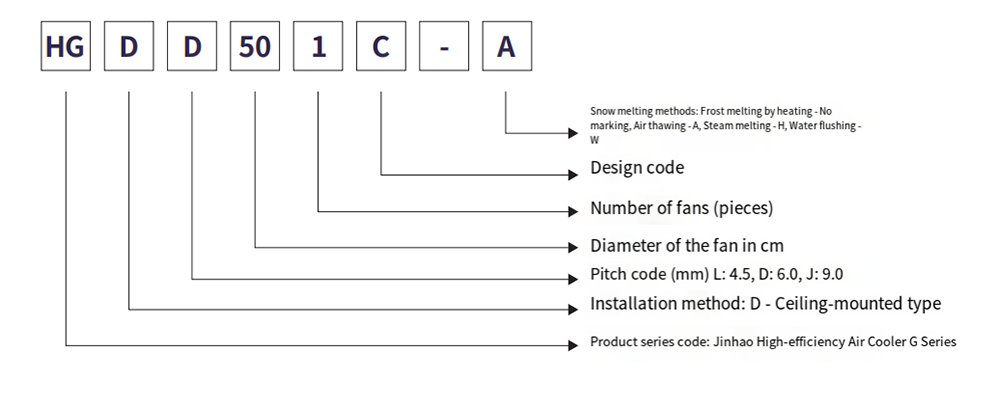

Exemplar Description
Mensa technica parametri (R404A)
Technical parametri summus efficientiam aeris frigidior Thracam ad gelu electrica laquearia
Film iustae: 4.5mm
| Exemplar | Facultatem refrigerandi kW | Tubus volumen | Fan parametri | Snowmelt electrica calefactio | |||||
| SC1 | SC2 | dm² | Numerus foliorum x diametri | potentia W | Aeris volumen m³/h | range m | Coil kW * ramus | Pan aqua kW*ramus | |
| HGDL 501C | 6.7 | 4.6 | 3.2 | 1xΦ500 | 1x414 | 5000 | 12 | 0.28*6 | 0.28*2 |
| HGDL501D | 8.1 | 5.6 | 4.3 | 1xΦ500 | 1x460 | 4900 | 12 | 0.30*6 | 0.30*2 |
| HGDL 501E | 9.8 | 6.7 | 5.4 | 1xΦ500 | 1x460 | 4500 | 12 | 0.30*8 | 0.30*2 |
| HGDL601E | 16.6 | 11.4 | 9.2 | 1xΦ600 | 1x780 | 7500 | 15 | 0.40*8 | 0.4*2 |
| HGDL 502D | 22.2 | 15.3 | 11.8 | 2xΦ500 | 2x460 | 11500 | 13 | 0.72*6 | 0.72*2 |
| HGDL552D | 25.4 | 17.5 | 13.2 | 2xΦ550 | 2x600 | 13700 | 13 | 0.72*6 | 0.72*6 |
| HGDL602D | 28.9 | 19.9 | 14.7 | 2xΦ600 | 2x780 | 16500 | 16 | 0.72*10 | 0.72*2 |
| HGDL602E | 33.8 | 23.3 | 18.4 | 2xΦ600 | 2x780 | 15200 | 16 | 0.72*10 | 0.72*2 |
| HGDL602F | 37.8 | 26.1 | 22.1 | 2xΦ600 | 2x780 | 14500 | 16 | 0.72*10 | 0.72*2 |
| HGDL632D | 40.7 | 28.1 | 23.7 | 2xΦ630 | 2x800 | 19000 | 19 | 0.95*10 | 0.95*2 |
| HGDL632E | 44.1 | 30.4 | 26.9 | 2xΦ630 | 2x800 | 18000 | 19 | 0.87*12 | 0.87*4 |
| HGDL603F | 54.5 | 37.6 | 32.3 | 3xΦ600 | 3x780 | 20500 | 17 | 1.03*12 | 1.03*4 |
| HGDL633F | 66.8 | 46.1 | 38.8 | 3xΦ630 | 3x800 | 25500 | 20 | 1.03*14 | 1.03*4 |
Mensa technica parametri (R404A)
Technical parametri summus efficientiam aeris frigidior Thracam ad gelu electrica laquearia
Film iustae: 6.0mm
| Exemplar | Facultatem refrigerandi kW | Tubus volumen | Fan parametri | Snowmelt electrica calefactio | ||||||
| SC1 | SC2 | SC3 | dm² | Numerus foliorum x diametri | potentia W | Aeris volumen m³/h | range m | Coil kW * ramus | Aqua lance kW ramum | |
| HGDD501C | 5.6 | 4.0 | 3.2 | 3.2 | 1xΦ500 | 1x414 | 5200 | 12 | 0.28*8 | 0.28*2 |
| HGDD501D | 7.1 | 5.1 | 4.0 | 4.3 | 1xΦ500 | 1x460 | 5100 | 12 | 0.30*8 | 0.30*2 |
| HGDD501E | 82 | 5.9 | 4.6 | 5.4 | 1xΦ500 | 1x460 | 4800 | 12 | 0.30*10 | 0.30*2 |
| HGDD601E | 14.4 | 10.3 | 8.1 | 9.2 | 1xΦ600 | 1x780 | 8200 | 15 | 0.40*10 | 0.4*2 |
| HGDD502D | 183 | 13.1 | 10.3 | 11.8 | 2xΦ500 | 2x460 | 12000 | 13 | 0.72*8 | 0.72*2 |
| HGDD552D | 21.8 | 15.1 | 11.9 | 13.2 | 2xΦ550 | 2x600 | 14500 | 13 | 0.72*8 | 0.72*6 |
| HGDD602D | 24.1 | 17.2 | 13.6 | 14.7 | 2xΦ600 | 2x780 | 17000 | 16 | 0.72*12 | 0.72*2 |
| HGDD602E | 29.1 | 20.8 | 164 | 18.4 | 2xΦ600 | 2x780 | 16400 | 16 | 0.72*12 | 0.72*2 |
| HGDD602F | 32.1 | 22.9 | 18.1 | 22.1 | 2xΦ600 | 2x780 | 15500 | 16 | 0.72*12 | 0.72*2 |
| HGDD632D | 33.7 | 24.1 | 19.0 | 23.7 | 2xΦ630 | 2x800 | 20000 | 19 | 0.95*12 | 0.95*2 |
| HGDD632E | 37.2 | 26.6 | 21.0 | 26.9 | 2xΦ630 | 2x800 | 19000 | 19 | 0.87*12 | 0.87*4 |
| HGDD603F | 46.8 | 33.4 | 264 | 32.3 | 3xΦ600 | 3x780 | 22000 | 17 | 1.03*12 | 1.03*4 |
| HGDD633F | 56.7 | 40.5 | 32.0 | 38.8 | 3xΦ630 | 3x800 | 26500 | 20 | 1.03*14 | 1.03*4 |
Mensa technica parametri (R404A)
Technical parametri summus efficientiam aeris frigidior Thracam ad gelu electrica laquearia
Film iustae: 9.0mm
| Exemplar | Facultatem refrigerandi kW | Tubus volumen | Fan parametri | Snowmelt electrica calefactio | ||||||
| SC3 | SC4 | SC5 | dm² | Numerus foliorum x diametri | potentia W | Aeris volumen m³/h | range m | Coil kW * ramus | Aqua lance kW ramum | |
| HGDJ501C | 2.5 | 2.0 | 1.9 | 3.2 | 1xΦ500 | 1x414 | 5300 | 12 | 0.28*8 | 0.28*2 |
| HGDJ501D | 3.3 | 2.6 | 2.5 | 4.3 | 1xΦ500 | 1x460 | 5500 | 12 | 0.30*8 | 0.30*2 |
| HGDJ501E | 3.7 | 3.0 | 2.9 | 5.4 | 1xΦ500 | 1x460 | 5100 | 12 | 0.30*10 | 0.30*2 |
| HGDJ601E | 6.5 | 5.2 | 5.0 | 9.2 | 1xΦ600 | 1x780 | 8300 | 15 | 0.40*10 | 0.4*2 |
| HGDJ502D | 8.3 | 6.6 | 6.3 | 11.8 | 2xΦ500 | 2x460 | 12500 | 13 | 0.72*8 | 0.72*2 |
| HGDJ552D | 8.7 | 6.9 | 6.7 | 13.2 | 2xΦ550 | 2x600 | 15000 | 13 | 0.72*8 | 0.72*6 |
| HGDJ602D | 10.8 | 8.5 | 7.8 | 14.7 | 2xΦ600 | 2x780 | 17500 | 16 | 0.72*12 | 0.72*2 |
| HGDJ602E | 13.3 | 10.6 | 10.2 | 18.4 | 2xΦ600 | 2×780 | 17000 | 16 | 0.72*12 | 0.72*2 |
| HGDJ602F | 14.5 | 11.6 | 11.1 | 22.1 | 2xΦ600 | 2x780 | 16000 | 16 | 0.72*12 | 0.72*2 |
| HGDJ632D | 15.8 | 12.6 | 12.1 | 23.7 | 2xΦ630 | 2x800 | 21000 | 19 | 0.95*12 | 0.95*2 |
| HGDJ632E | 17.7 | 14.1 | 13.5 | 26.9 | 2xΦ630 | 2x800 | 20500 | 19 | 0.87*12 | 0.87*4 |
| HGDJ603F | 21.4 | 17.1 | 16.4 | 32.3 | 3xΦ600 | 3x780 | 23000 | 17 | 1.03*12 | 1.03*4 |
| HGDJ633F | 25.4 | 20.3 | 19.5 | 38.8 | 3xΦ630 | 3x800 | 27000 | 20 | 1.03*14 | 1.03*4 |

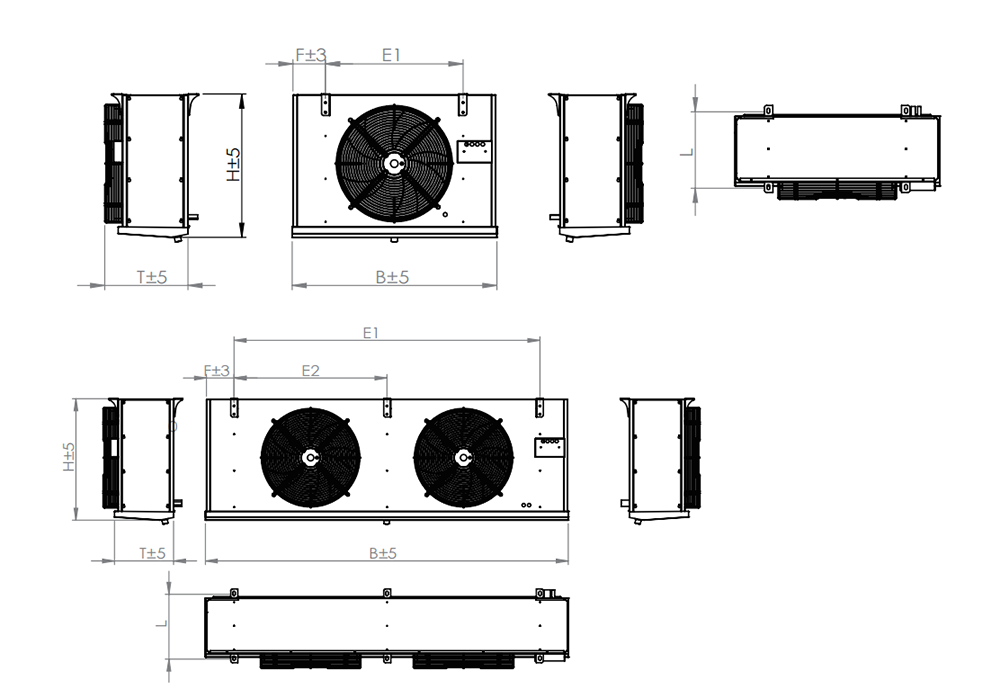

Species ac institutionem dimensiones
Species ac institutionem dimensiones of a high-efficiency electric frost ceiling air cooler
Film iustae: 4.5mm
| Exemplar | Interface Specification (mm) | Dimensiones B*T*H | installation dimensiones | pondus | Map markup | |||||
| Inlet / reditus fistula | INCILE / (inch) | LxWxH(mm) | L | E1 | E2 | E3 | F | medical history | ||
| HGDL501C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 36 | A |
| HGDL501D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 38 | A |
| HGDL501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 44 | A |
| HGDL601E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 56 | A |
| HGDL502D | Φ16/Φ35 | G1 | 1992* 400*680 | 340 | 840 | 840 | / | 126 | 80 | B |
| HGDL552D | Φ16/Φ35 | G1 | 1992* 400* 760 | 340 | 840 | 840 | / | 126 | 85 | B |
| HGDL602D | Φ22/Φ42 | G1-1/2 | 1992* 400*831 | 340 | 840 | 840 | / | 126 | 95 | B |
| HGDL602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 115 | B |
| HGDL602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 125 | B |
| HGDL632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 144 | B |
| HGDL632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 160 | B |
| HGDL603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 166 | C |
| HGDL633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 196 | C |
Species ac institutionem dimensiones
Species ac institutionem dimensiones of a high-efficiency electric frost ceiling air cooler
Film iustae: 6.0mm
| Exemplar | Interface Specification (mm) | Dimensiones B*T*H | installation dimensiones | pondus | Map markup | |||||
| Inlet / reditus fistula | INCILE / (inch) | LxWxH(mm) | L | E1 | E2 | E3 | F | medical history | ||
| HGDD5011C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 35 | |
| HGDD50i¹D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 37 | |
| HGDD501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 43 | |
| HGDD60i¹E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 57 | A |
| HGDD502D | Φ16/Φ35 | G1 | 1992* 400*680 | 340 | 840 | 840 | / | 126 | 78 | B |
| HGDD552D | Φ16/Φ35 | G1 | 1992* 400* 760 | 340 | 840 | 840 | / | 126 | 86 | B |
| HGDD602D | Φ22/Φ42 | G1-1/2 | 1992* 400*831 | 340 | 840 | 840 | / | 126 | 93 | B |
| HGDD602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 112 | B |
| HGDD602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 122 | B |
| HGDD632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 140 | B |
| HGDD632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 154 | B |
| HGDD603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 162 | G |
| HGDD633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 192 | C |
Species ac institutionem dimensiones
Species ac institutionem dimensiones of a high-efficiency electric frost ceiling air cooler
Film iustae: 9.0mm
| Exemplar | Interface Specification (mm) | Dimensiones B*T*H | installation dimensiones | pondus | Map markup | |||||
| Inlet / reditus fistula | INCILE / (inch) | LxWxH(mm) | L | E1 | E2 | E3 | F | medical history | ||
| HGDJ501C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 34 | |
| HGDJ501D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 36 | |
| HGDJ501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 42 | |
| HGDJ601E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 55 | A |
| HGDJ502D | Φ16/Φ35 | G1 | 1992* 400*680 | 340 | 840 | 840 | / | 126 | 76 | B |
| HGDJ552D | Φ16/Φ35 | G1 | 1992* 400* 760 | 340 | 840 | 840 | / | 126 | 87 | B |
| HGDJ602D | Φ22/Φ42 | G1-1/2 | 1992* 400*831 | 340 | 840 | 840 | / | 126 | 94 | B |
| HGDJ602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 114 | B |
| HGDJ602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 121 | B |
| HGDJ632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 139 | B |
| HGDJ632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 160 | B |
| HGDJ603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 162 | C |
| HGDJ633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 190 | C |
Nota I: Signa Design:
| Standard condiciones translationem calor | Aeris inlet temperatus | Evaporatio temperatus | Relativum temperatus | Relativum temperatus | Superheat |
| SC1 | 10℃ | 0℃ | 85% | 1.35 | 6.5K |
| SC2 | 0℃ | -8℃ | 85% | 1.15 | 5.2K |
| SC3 | -18℃ | -25℃ | 95% | 1.05 | 4.6K |
| SC4 | -25℃ | -31℃ | 95% | 1.01 | 3.9K |
| SC5 | -34℃ | -40℃ | 95% | 1.01 | 3.9K |
Nota 2: Conversionis elementum ad refrigerandum
| Refrigerants | Conditiones operating | R22 | R404A | R507 | R134a |
| Correctio factor | SC1 | 0.95 | 1 | 1 | 0.93 |
| Correctio factor | SC2 | 0.95 | 1 | 1 | 0.91 |
| Correctio factor | SC3 | 0.95 | 1 | 1 | 0.85 |
