DD Type Medium Temperature Ceiling Air Cooler

Product Introduction

Genus medium temperatura DD laquearia aer frigidior-escendens specialiter destinatur ad culturas medias temperaturas frigidas circa -18℃. Integram refrigerationem efficientem et subtiliorem evacuationem integrat, et late in frigidis repositionibus missionum ciborum, piscium, ciborum congelatarum adhibet, etc. Hoc instrumentum admittit expansionem mechanicam formatam tibiarum tenuium ferro munitam et secundarium flangae aluminium pinnas pulsandum, modo gyro dispositae. Composita cum optimized caloris permutatione structurae consilio, efficiat duplicem emendationem in refrigeratione efficientiae et uniformitatis frigoris. Evaporator cum fabricato in ferro tubuloso electrico defixo systemate immaculato instructum est. Tubuli electrici calefactionis directe in orbem inseruntur, ut celerem et penitus defluentem habeant, efficaciter minuendi tempus et efficaciam repositam augendi.

Apparatus cum ventilabro rotoris externo instructus est, pluma humoris-probationis et resistentiae humilis temperaturae. Habet magnum volumen aeris, sonitus humilem, et operationem stabilem et firmam, occurrens postulationibus duplicibus ambitus ad quietem et efficaciam energiae. Testa e qualitate ferro facta est cum processu plastico spargit, corrosio fortiter resistens, species simplex et elegans, et variis Spatiis repono apta est. Productum aeris rectitudinem temptandi et pressionis tenendi NITROGENIUM implendi curationem subiit antequam officinas relinquat ut systema mundum sit ac libero libero, ut vitae officia instrumentorum extendat. Specificationes nativus fieri possunt secundum actuales necessitates horreorum, mollius accommodantes ad diversas facultates repositas et extensiones.

NOS CONTACTATE

Technical notitia ex DD genus aer frigidior

Fin spatium 6mm

Model			DD-1.4/7	DD-2.2/12	DD-3/15	DD-4/22	DD-5.7/30	DD-8/40	DD-11.5/60	DD-16/80
Facultatem refrigerandum		KW	1.4	2.2	3	4	5.7	8	11.5	16
Calor commutationem spatio		m²	7	12	15	22	30	40	60	80
Fan	Diameter	mm	300	300	300	300	400	400	450	450
	Aeris fluxus	m³	1950	2*1950	2*1950	3*1950	2*4000	2*4000	2*4700	2*4700
	quantitas	N	1	2	2	3	2	2	2	2
	Voltage	V	220/380	220/380	220/380	220/380	220/380	220/380	380	380
	Potestas	W	100	2*100	2*100	3*100	2*230	2*230	2*280	2*280
	Range	M	8	8	8	8	10	10	15	15
Defrost calefacientis	Coil defrost potentia	W	875	1400	1600	2200	1800	2300	3900	5200
	Coil defrost potentia	W	500	700	800	1100	900	1150	1300	1300
	intentione defrost calefacientis	V	220	220	220	220	220	220	220	220

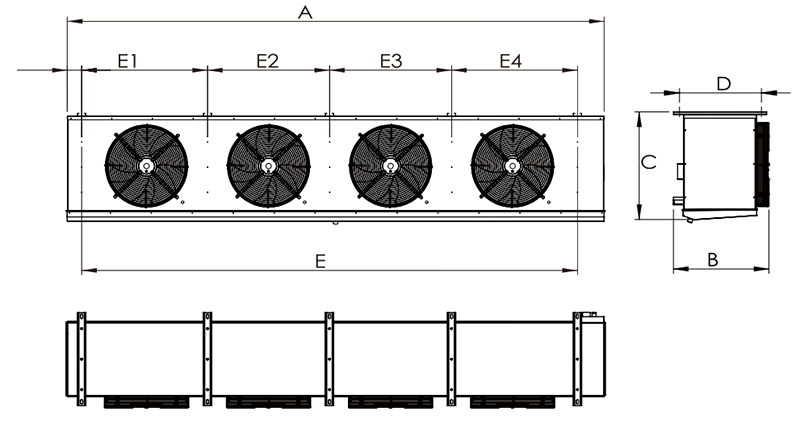

Institutionem dimensio	A	mm	725	1010	1125	1575	1330	1750	1820	1820
	B	mm	425	425	425	425	500	500	710	710
	C	mm	460	460	460	460	530	530	710	710
	D	mm	260	260	260	260	390	390	510	510
	E	mm	530	815	930	1380	1060	1480	1550	1550
	El	mm						740	775	775
	E2	mm
	E3	mm
	F	mm	80	80	80	80	95	95	95	95
Connection Pipe	Inlet	mm	Φ12	Φ12	Φ12	Φ12	Φ16	Φ16	Φ19	Φ19
Connection Pipe	Outlet	mm	Φ22	Φ22	Φ22	Φ22	Φ25	Φ25	Φ35	Φ35
INCILE tibia			G1"	G1"	G1"	G1"	G1"	G1"	G1"	G1"

Model			DD-19/100	DD-24/120	DD-28/140	DD-33/160	DD-37/200	DD-47/20	DD-57/30	DD-67/360	DD-81/440
Facultatem refrigerandum		KW	19	24	28	33	37	47	57	67	81
Calor commutationem spatio		m²	100	120	140	160	200	250	310	360	440
Fan	Diameter	mm	450	450	450	450	600	600	600	700	700
	Aeris fluxus	m³	3*4700	3*4700	4*4700	4*4700	2*10000	3*10000	3*10000	3*14000	3*14000
	quantitas	N	3	3	4	4	2	3	3	3	3
	Voltage	V	380	380	380	380	380	380	380	380	380
	Potestas	W	3*280	3*280	4*280	4*280	2*1500	3*150	3*150	3*2200	3*2200
	Range	M	15	15	15	15	20	20	20	20	20
Defrost calefacientis	Coil defrost potentia	W	6200	7600	8600	9800	12400	15200	17200	19350	22050
	Coil defrost potentia	W	1550	1900	2150	2450	1550	1900	2150	2150	2450
	intentione defrost calefacientis	V	220	220	220	220	220	220	220	220	220
	A	mm	2220	2720	3120	3520	2220	2720	3200	3200	3520
	B	mm	710	710	710	710	1060	1060	1060	1060	1060
Institutionem dimensio	C	mm	710	710	710	710	920	920	920	1030	1140
	D	mm	510	510	510	510	690	690	690	690	690
	E	mm	1950	2450	2850	3250	1950	2450	2930	2930	3250
	E1	mm	658	825	725	825	975	825	985	985	1090
	E2	mm	633	800	700	800		800	960	960	1070
	E3	mm			700	800
	F	mm	95	95	95	95	95	95	95	95	95
Connection Pipe	Inlet	mm	Φ19	Φ19	Φ25	Φ25	Φ25	Φ25	Φ25	2-Φ25	2-Φ25
Connection Pipe	Outlet	mm	Φ35	Φ35	Φ50	Φ50	Φ50	Φ50	Φ50	2-Φ50	2-Φ50
INCILE tibia			G1"	G1"	G1"	G1"	G1.5"	G1.5"	G1.5"	G2"	G2"
