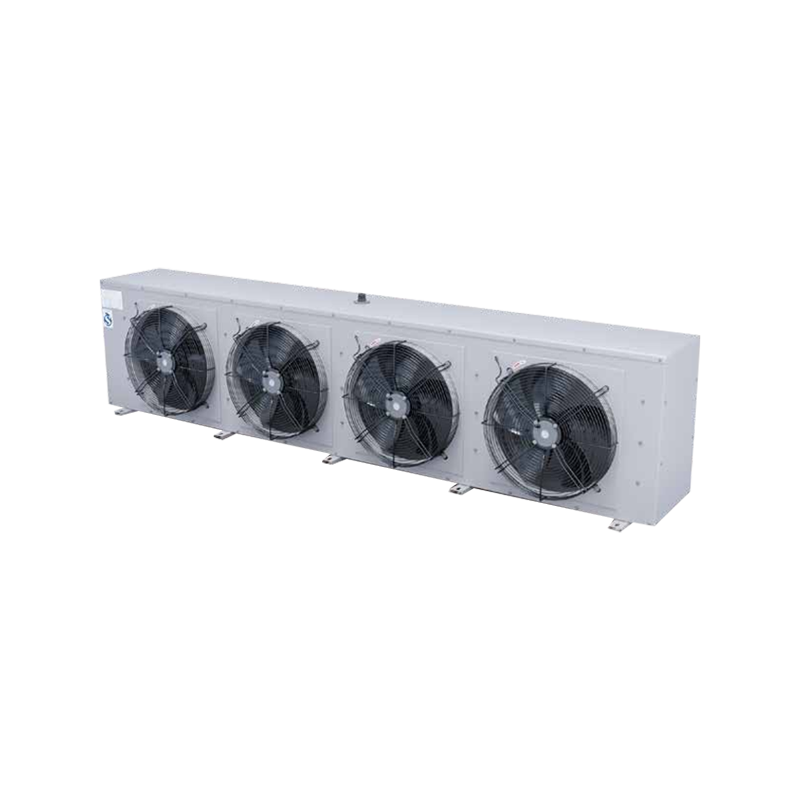

DL Type High Temperature Teiling Air Cooler

Product Introduction

DL genus summus temperatus laquearia aer frigidior factus est refrigeratio et temperatura reductio instrumenti ad frigidum circa 0℃ repositionis specialiter destinatum, et late in cibo conservationis missionum uti ova recentia et legumina adhibetur. Productum in testam pulveris iactatam adoptat, corrosionem featuram resistentiam et speciem attractivam. Angues haesitati modo dispositae sunt, et aluminium pinnulae cupreae per expansionem mechanicam arcte connexae, altum calorem trans- ducunt efficientiam procurandi. Apparatum officinarum wiring instructum est. Omnes wiring centralizatae sunt in archa commissurae, ad institutionem faciendam et ad sustentationem convenientem. Ipsumque INCILE scientifice designatum et certum INCILE praestat. Assecula canalis typus facile est institutionem.

Hic aer frigidus CERAULA sustinet diuturnum spatium aeris copiam seu customizationem motorum probationis explosionis. Tubulae ferro U informibus tubulosae inaculatae et magnesium oxydatum electricum calefactionis tubuli electrici in spiram ponuntur, effectum mirabilem obtinentes. Productum signis nationalibus obtemperat, experimentum stricte subiit, et features stabilis et certa effectio. Est specimen electionis pro conservatione frigoris repono.

NOS CONTACTATE

Technical notitia ex DL genus aeris frigidior Thracam

Fin space 4.5mm

Exemplar			DL-2/10	DL-3/15	DL-4.3/20	DL-5.3/25	DL-8.2/40	DL-12/55	DL-17/80	DL-22/105
Facultatem refrigerandum		KW	2	3	4.3	5.3	8.2	12	17	22
Calor commutationem spatio		m²	10	15	20	25	40	55	80	105
Fan	ΦDiameter	mm	300	300	300	300	400	400	450	450
	Aeris fluxus	m³	1950	2*1950	2*1950	3*1950	2*4000	2*4000	2*4700	2*4700
	quantitas	N	1	2	2	3	2	2	2	2
	Voltage	V	220/380	220/380	220/380	220/380	220/380	220/380	380	380
	Potestas	W	100	2*100	2*100	3*100	2*230	2*230	2*280	2*280
	Range	M	8	8	8	8	10	10	15	15
Defrost calefacientis	Coil defrost potentia	W	500	700	800	1100	900	1150	3900	3900
	Coil defrost potentia	W	500	700	800	1100	900	1150	1300	1300
	intentione defrost calefacientis	V	220	220	220	220	220	220	220	220

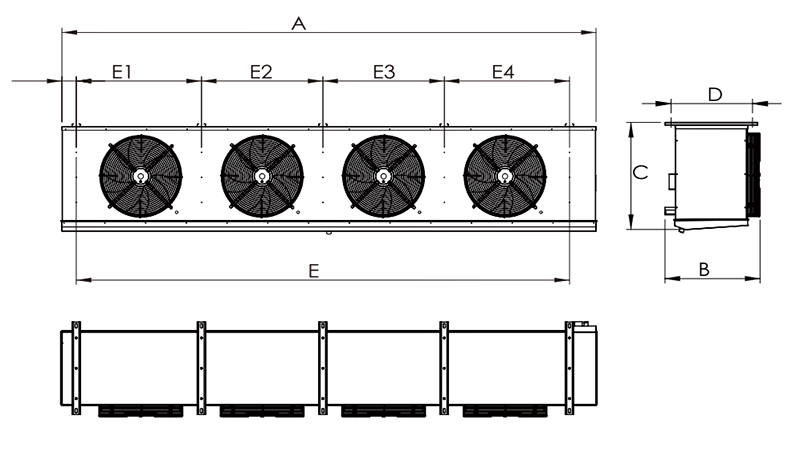

Institutionem dimensio	A	mm	725	1010	1125	1575	1330	1750	1820	1820
	B	mm	425	425	425	425	500	500	710	710
	C	mm	460	460	460	460	530	530	710	710
	D	mm	260	260	260	260	390	390	510	510
	E	mm	530	815	930	1380	1060	1480	1550	1550
	E1	mm						740	775	775
	E2	mm
	E3	mm
	F	mm	80	80	80	80	95	95	95	95
Connection Pipe	Inlet	mm	Φ12	Φ12	Φ12	Φ12	Φ16	Φ16	Φ19	Φ19
Connection Pipe	Outlet	mm	Φ22	Φ22	Φ22	Φ22	Φ25	Φ25	Φ35	Φ35
INCILE tibia			G1"	G1"	G1"	G1"	G1	G1	G1"	G1"

Modus			DL-26/125	DL-33/160	DL-38/185	DL-44/210	DL-53/260	DL-67/330	DL-83/410	DL-94/470	DL-116/580
Facultatem refrigerandum		KW	26	33	38	44	53	67	83	94	116
Calor commutationem spatio		m²	125	160	185	210	260	330	410	470	580
Fan	Diameter	mm	450	450	450	450	600	600	600	700	700
	Aeris fluxus	m³	3*4700	3*4700	4*4700	4*4700	2*10000	3*10000	3*10000	3*14000	3*14000
	quantitas	N	3	3	4	4	2	3	3	3	3
	Voltage	V	380	380	380	380	380	380	380	380	380
	Potestas	W	3*280	3*280	4*280	4*280	2*1500	3*150	3*150	3*2200	3*2200
	Range	M	15	15	15	15	20	20	20	20	20
Defrost calefacientis	Coil defrost potentia	W	4650	5700	6450	7350	7750	9500	10750	12900	14700
	Coil defringere potestatem	W	1550	1900	2150	2450	1550	1900	2150	2150	2450
	intentione defrost calefacientis	V	220	220	220	220	220	220	220	220	220
Institutionem dimensio	A	mm	2220	2720	3120	3520	2220	2720	3200	3200	3520
	B	mm	710	710	710	710	1060	1060	1060	1060	1060
	C	mm	710	710	710	710	920	920	920	1030	1140
	D	mm	510	510	510	510	690	690	690	690	690
	E	mm	1950	2450	2850	3250	1950	2450	2930	2930	3250
	E1	mm	658	825	725	825	975	825	985	985	1090
	E2	mm	633	800	700	800		800	960	960	1070
	E3	mm			700	800
	F	mm	95	95	95	95	95	95	95	95	95
Connection Pipe	Inlet	mm	Φ19	Φ19	Φ25	Φ25	Φ25	Φ25	Φ25	2-Φ25	2-Φ25
Connection Pipe	Outlet	mm	Φ35	Φ35	Φ50	Φ50	Φ50	Φ50	Φ50	2-Φ50	2-Φ50
INCILE tibia			G1"	G1"	G1"	G1"	G1.5"	G1.5"	G1.5"	G2"	G2"

De Nobis

Ut Mercatus Sinarum DL Type High Temperature Teiling Air Cooler Exportatores et DL Type High Temperature Teiling Air Cooler Officina, Societas Zhejiang Jinhao Refrigeration Equipment Co., Ltd. est societas comprehensiva integrationem R&D, fabricationis et operationis accessoriorum refrigerationis et apparatuum congelationis. Praecipua producta nostra includunt seriem unitatis, seriem commutatoris caloris pinnati ..... Est fabrica cum productis completis in industria refrigerationis domesticae nunc. Offerimus DL Type High Temperature Teiling Air Cooler venalia.
