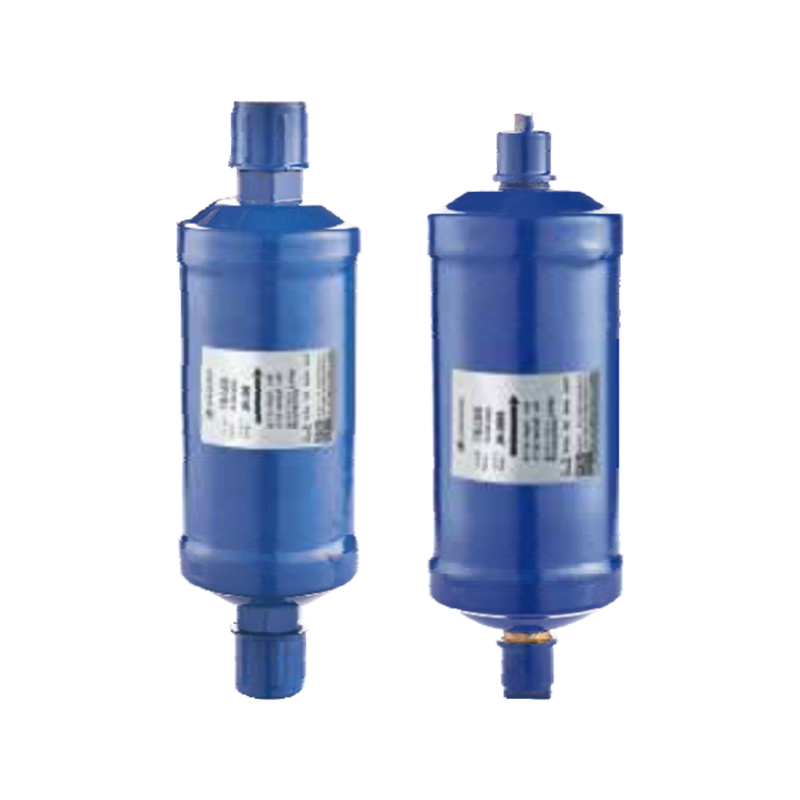

Product Introduction
Filtrum siccioribus compositum consilium siccioris et colum adhibet, quod ad medium gas. Filtrum siccior est alta subtiliter colum et excellentis aquae effusio habilitas.
Filtrum siccioribus utitur compositione consilio siccioris et colum, quod ad medium gas. Productum altum subtiliter sparguntur et praestantia habilitas aquae effusio, propter plumam producti, res alienas refrigerationem systematis intrare non possunt, ita ut ratio refrigerationis aequaliter currere possit.
Feature
Superficies desiccant ad usum effective sparguntur
Desiccant facultatem ad aquam et acidum sparguntur
A technologia fibreglass network compages moderata ut melius facultatem colum praebeat
ODF, SAE connexio ad libitum est
Technical data
Refrigerant: CFC, HCFC, HFC
Maximum opus pressura: 3.5MPa

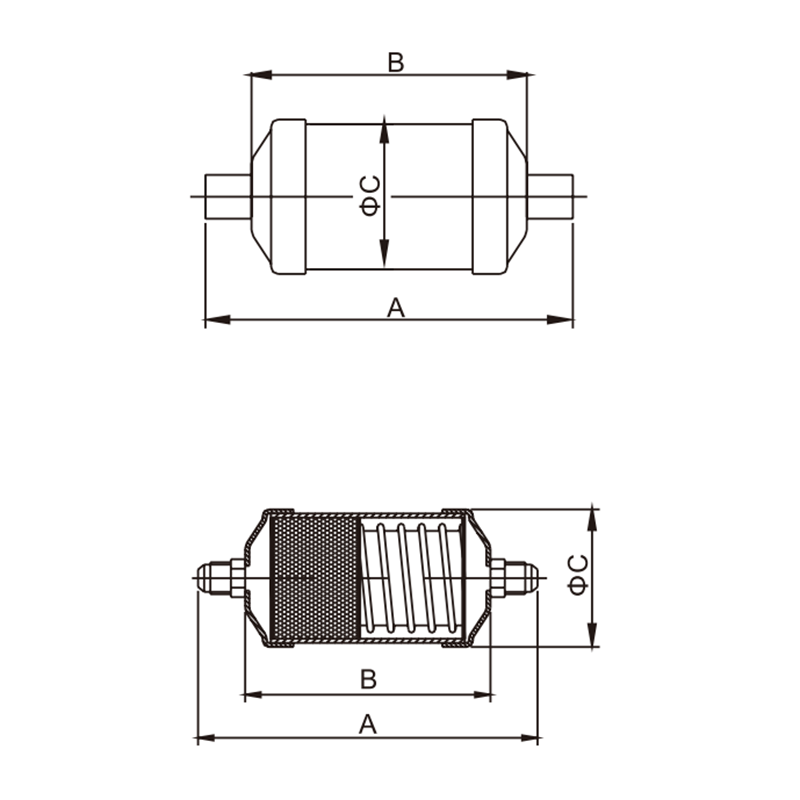

| Exemplar | Connection size (inch) | Capacitas refrigerandi | A(mm) | B(mm) | C(mm) | ||||
| ODF | SAE | R134a | R22 | R404a | R502 | ||||
| JH-052 | 1/4" | 9.0 | 9.8 | 6.5 | 6.3 | 128 | 82 | ||
| JH-052S | 1/4" | 13.3 | 14.4 | 9.6 | 9.4 | 118 | |||
| JH-053 | 3/8" | 21.4 | 23.3 | 15.4 | 15.1 | 138 | |||
| JH-053S | 3/8" | 26.5 | 28.9 | 19.1 | 18.7 | 118 | |||
| JH-083 | 3/8" | 21.8 | 23.7 | 15.7 | 15.4 | 156 | 100 | Φ63 | |
| JH-083S | 3/8" | 27.4 | 29.8 | 19.8 | 19.3 | 136 | |||
| JH-084 | 1/2" | 36.4 | 39.6 | 26.2 | 25.7 | 160 | |||
| JH-084S | 1/2" | 28.9 | 42.4 | 28.1 | 27.5 | 136 | |||
| JH-163 | 3/8" | 22.2 | 24.2 | 16.1 | 15.7 | 178 | 122 | ||
| JH-163S | 3/8" | 31.7 | 34.3 | 22.9 | 22.4 | 158 | |||
| JH-164 | 1/2" | 38.5 | 41.9 | 27.8 | 27.2 | 182 | |||
| JH-164S | 1/2" | 49.6 | 54 | 35.8 | 35.1 | 158 | |||
| JH-165 | 5/8" | 50.5 | 54.9 | 36.4 | 35.7 | 190 | |||
| JH-165S | 5/8" | 67.2 | 73.1 | 48.5 | 47.5 | 168 | |||
| JH-304 | 1/2" | 43.6 | 47.5 | 31.5 | 30.8 | 240 | 179 | Φ76 | |
| JH-304S | 1/2" | 54.1 | 59.1 | 39.2 | 38.4 | 215 | |||
| JH-305 | 5/8" | 55.6 | 60.5 | 40.1 | 39.3 | 247 | |||
| JH-305S | 5/8" | 74.0 | 80.5 | 53.4 | 52.3 | 225 | |||
| JH-306 | 3/4" | 58.6 | 65.2 | 43.5 | 43 | 260 | |||
| JH-306S | 3/4" | 78.2 | 84.3 | 56.5 | 54.2 | 225 | |||
| JH-307 | 7/8" | 64.1 | 86.7 | 62.4 | 60.1 | 275 | |||
| JH-307S | 7/8" | 83.4 | 90.8 | 60.2 | 59.0 | 230 | |||
| JH-309S | 1-1/8" | 109.1 | 118.7 | 78.7 | 77.1 | 240 | |||
